FULL-CIRCLE COLOR SCANNING SONAR Model FSV-85 MARK-2

Features

• Various searching modes available including horizontal, slant and dual mode

  HORIZONTAL MODES
  The horizontal display mode provides a 360 degree picture around the vessel. The H2 mode shows one of four kinds of horizontal display combinations: PORTRAIT,LANDSCAPE, RIGHT INSET and LEFT INSET. The range, tilt, gain and user program are set independently, for each display.



  SLANT MODE
  The slant mode provides a half-circle (180 degrees) picture like half-circle Sonar.

  ❶Direct distance, horizontal distance, water depth and bearing to the cursor
  ❷Seabed
  ❸School of fish
  ❹Sea surface reflection
  ❺Ship’s track
  ❻Range, tilt, and display mode of Slant Mode
  ❼Gain

  HORIZONTAL and VERTICAL Display Combinations
  The world's first sonar in its class to combine two vertical sections. The sonar is capable of recording a vertical cross-section (0-90°) in any direction, either in one direction or
  in two directions. This allows the user to compare two schools of fish at the same time.

  ❶Direct distance, horizontal distance, water depth and bearing to the cursor
  ❷Bearing mark for vertical mode 1 (V1)
  ❸Cursor
  ❹Range distance of vertical mode
  ❺Water depth under the boat
  ❻Ship’s track
  ❼Gain
  ❽Range and gain of Vertical mode

• Fish estimate feature to compare the volume of two schools of fish

• High resolution for long range detection

  The combination of highly sensitive sensors and Furuno's new processing technology allows for longer range detection than ever before
  while maintaining high resolution targets.

• Target lock function for fish tracking

  Automatically track schools of fish while calculating their speed and direction. Also display the distance and depth from the vessel to the school.
  It is also possible to track a fixed position such as a sea current.

  By hitting the target lock mark on a fish school echo, the distance and depth to that school of fish, as well as the direction and speed of movement are displayed numerically.

• Fish concentration and histogram display to help you decide when to cast your net

  In conjunction with the target lock function, the sonar can display the relative volume of fish in the estimate mark. This helps you to make the right decision when casting your net.

  Up to two fish quantity marks can be typed on one screen, and the response of each is displayed as a histogram. This is useful for determining the amount of fish.

• Auto filter for clearer images

  The FSV-85-MARK-2 incorporates a digital filter that regulates noise interference, providing a clear view of the display at high speed without affecting the Sonar.

• Beam stabilization function

  The beam stabilization function compensates for the effects of pitch and roll. This allows stable detection of sea currents and schools of fish, even in poor weather conditions.


• Storage and playback of Sonar images

  The FSV-85-MARK-2 allows you to take a screenshot and playback Sonar images.

  The recording will be played on a pop-up screen.

• User-Friendly, Programmable, Intelligent Controls

  The User Program Control (up to 10 programs) provides for instant setup of the equipment according to fishing ground or target fish. Ten programs may be set up, and vertical and horizontal display settings may be programmed together or individually. In addition, 10 function keys provide one-touch display of desired menu or frequently used menu settings such as: Recording still images, recalling still images, erasing marks, activitate or deactivate the beam stabilization etc.


  Customizable menu

• Short raise/lower time of the transducer & intuitive position indicator

  The greatly reduced raise/lower time of the transducer allows for quick adjustment to prevent damage to the transducer.
  800 mm Travel: 8 seconds
  1100 mm Travel: 11 seconds

  The position indicator (below) lets you know the position of the transducer at a glance.


• Sub Control Unit and Remote Controller (wired) optionally available


  FSV-85 MARK-2 also allows the use of A USB wireless mouse

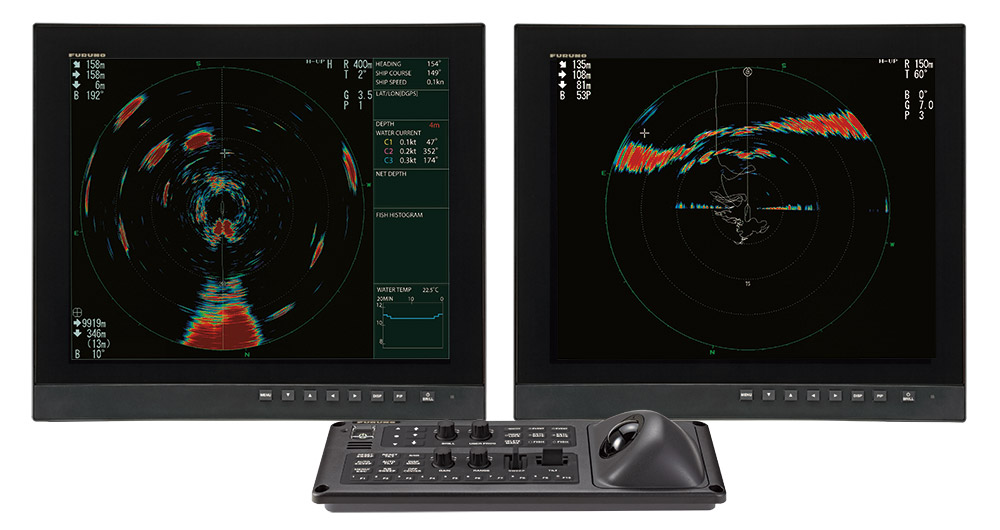

• Dual Display

  A dual display configuration allows the user to display information on two monitors simultaneously.
  This is very useful for viewing information quickly on each of the two monitors and for comparing them.

  Perfect with our High Resolution MU displays

Specifications

General

Scanning

Full digital beam forming

Frequency

80 kHz

Basic Range

60, 100, 150, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600, 2000 m

Audio Search

30 °; 60 °, 90 °; 180 °, 330 ° (selectable)

Display Unit

Pixel number

SXGA (1280×1024), UXGA (1600×1200), WUXGA (1920×1200)

Colors

32 colors (sonar picture), 6 colors (marks)

Orientation

Head-up, North-up*, Course-up* and True-motion*
^{* sensor required}

Display mode

Horizontal, S-scan, Horizonal combination, S-scan combination, Vertical 1 combination, Vertical 2 combination, Echo sounder combination, Vertical 1 + echo sounder

Additional functions

Custom mode, Interference rejecter, Echo Average, Noise limiter, Signal level, Auto-tilt, Automatic target tracking (target lock), Fish alarm, Over-voltage warning, Unretracted transducer warning

Transceiver Unit

Beam width (horizontal)

TX: 360 ° x 10.7 ° RX: 12.6 ° x 10.1 (-6 dB full width)

Beam width (vertical)

TX: 12.7 ° x 118.2 ° RX: 12.6 ° x 12.1 (-6 dB full width)

Tilt

-5 ° to 90 ° (downward)

Hull Unit

Raising/Lowering time

800 mm FSV-8472-MK2: 8 seconds
1100 mm FSV-8472-MK2: 11 seconds

Allowable Ship's Speed

800 mm FSV-8472-MK2: 18 kn
1100 mm FSV-8472-MK2: 15 kn

Interface

Ports

Serial (x5)
LAN (x2)
USB (x4)

Power Supply

Processor Unit

12-24 VDC: 4.0-2.0 A

Transceiver Unit

100/110/115/220/230 VAC: 15 A, 1 phase, 50/60 Hz

Rectifier

AC/DC power supply unit (Option)
PR-241: 100-230 ACV, 1 phase, 50/60 Hz

Hull Unit

200-220 VAC: 4 A max., 3 phase, 50/60 Hz

Environment

Temperature

Processor/Control Unit: -15℃ to +55℃
Transducer: -5℃ to ＋35℃
Other: 0℃ to ＋50℃

Relative humidity

93％ max (＋40℃)

Waterproofing

Control Unit: IP22 (panel), IP20 (chassis)
Processor unit: IP22
Transducer: IPX8
Transceiver Unit, Others: IPX0

Others

Weight

Control Unit: 3.5 kg
Processor Unit: 15 kg
Hull Unit: 380 kg (800 mm), 400 kg (1100 mm) *includes tank
Transceiver Unit: 95 kg
